XPEL Ultimate Plus thickness is commonly listed as 8 mil, but what does that number mean when a rock hits your bumper on I-880 or a branch brushes against your door?

Eight mil does not mean eight millimeters.

One mil equals one-thousandth of an inch, so an 8 mil paint protection film is roughly 0.008 inch thick. XPEL’s current ULTIMATE PLUS product page describes the film as 8 mil thick, while its technical data sheet lists a nominal thickness of 7.60 mil, plus or minus 10%, without the removable release liner.

That small difference comes from the way product thickness is specified and rounded.

More important for vehicle owners is what the film is built to do.

XPEL ULTIMATE PLUS is a clear polyurethane paint protection film designed to sit between your factory paint and common road hazards such as stone chips, abrasion, light scratches, bug residue, and other contaminants.

It is a sacrificial layer. The film takes the contact first so the painted surface underneath has a better chance of remaining untouched.

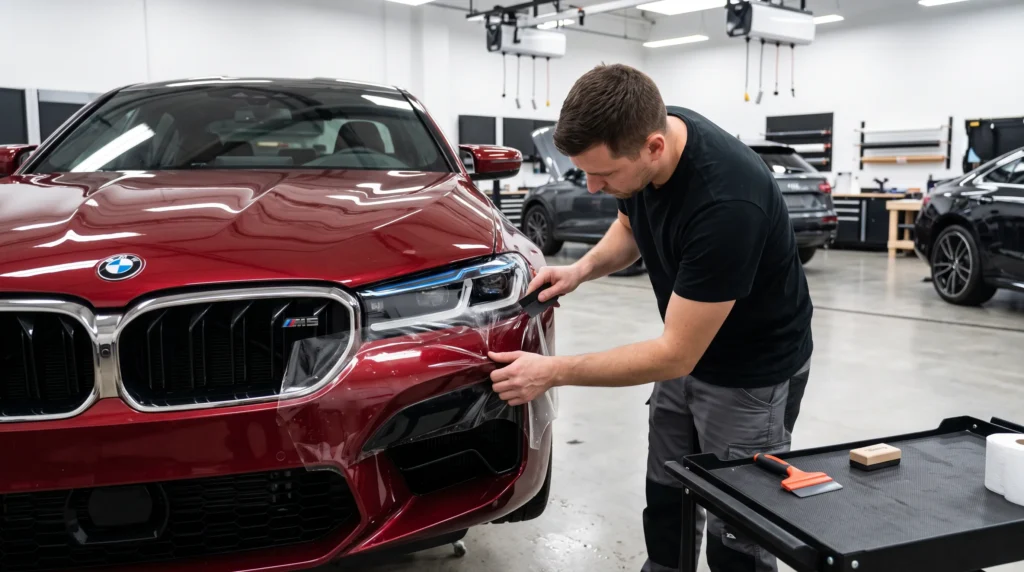

XCare Auto Films installs XPEL Paint Protection Film at 45277 Fremont Blvd STE 7, Fremont, CA 94538. We are XPEL certified and an XPEL vendor, and we install XPEL ULTIMATE products for Fremont, CA drivers and vehicle owners throughout the surrounding Bay Area.

Here is what that 8 mil thickness really means.

Table of Contents

• How Thick Is XPEL Ultimate Plus?
• What Does 8 Mil Mean?
• What Is Inside XPEL Ultimate Plus PPF?
• Does 8 Mil PPF Stop Rock Chips?
• How XPEL Ultimate Plus Handles Light Scratches
• Does XPEL Ultimate Plus Protect Against Abrasion?
• What About Bugs, Bird Droppings, and Road Contamination?
• What 8 Mil PPF Cannot Guarantee Protection Against
• Does Thicker PPF Always Mean Better Protection?
• Why Self-Healing Matters
• Where Should You Install XPEL Ultimate Plus?
• XPEL Ultimate Plus for Fremont Freeway Driving
• How Long Is XPEL Ultimate Plus Warranted?
• How to Care for XPEL Ultimate Plus
• Schedule XPEL PPF With XCare Auto Films
• Frequently Asked Questions

How Thick Is XPEL Ultimate Plus?

The published XPEL Ultimate Plus thickness is 8 mil.

XPEL states this directly on its current ULTIMATE PLUS product page.

Its technical data sheet gives a little more detail.

For XPEL ULTIMATE PLUS XUPL, the listed construction includes:

• A clear coat layer
• A polyurethane layer
• An acrylic adhesive layer
• A removable polyester release liner used before installation

XPEL lists the nominal film thickness without the release liner at approximately 193 microns, or 7.60 mil, plus or minus 10%.

That is why you may see “7.6 mil” in technical documents and “8 mil” in customer-facing product information.

They are describing the same general film.

The 8 mil figure is the rounded nominal thickness commonly used when discussing ULTIMATE PLUS.

What Does 8 Mil Mean?

A mil is a unit of thickness equal to 0.001 inch.

It is easy to confuse “mil” with “millimeter,” but they are very different measurements.

An 8 mil film is:

• About 0.008 inch thick
• Roughly 0.20 millimeter thick
• Thin enough to remain difficult to notice on properly installed paint
• Thick enough to place a polyurethane barrier over the painted surface

That may sound thin, especially compared with other materials you encounter every day.

But PPF does not work only because of thickness.

Its polyurethane construction, clear coat, adhesive, elasticity, and ability to deform under impact all play a part in how the film responds when road debris reaches the vehicle.

What Is Inside XPEL Ultimate Plus PPF?

The XPEL Ultimate Plus thickness comes from more than a single sheet of polyurethane.

XPEL’s technical data identifies several functional layers.

Clear Coat

The outer clear coat is the surface exposed to washing, weather, bugs, road residue, and light contact.

XPEL uses elastomeric polymers in this layer that allow light surface scratches to heal over time.

Polyurethane

The polyurethane section makes up most of the film’s thickness.

This flexible material is responsible for much of the physical barrier between road debris and vehicle paint.

Acrylic Adhesive

The adhesive bonds the PPF to the vehicle surface.

XPEL states that its adhesive is designed for strong adhesion while allowing proper installation and removal from suitable painted surfaces.

Release Liner

The release liner protects the adhesive before installation.

It is removed during the installation process and is not part of the film left on your vehicle.

That distinction matters when reading PPF thickness specifications.

Does 8 Mil PPF Stop Rock Chips?

Rock-chip protection is one of the main reasons people install PPF.

XPEL describes ULTIMATE PLUS as protection against rock chips, scratches, and environmental contaminants.

Its technical data sheet also states that the film is designed to protect automotive paint from stone chips and abrasion.

So what happens when a rock hits the film?

The polyurethane layer can absorb and distribute part of the impact before the object reaches the painted surface underneath.

That can make a major difference during ordinary road use.

The front bumper, hood, fenders, and mirrors are common places to install paint protection film because these surfaces regularly face debris while driving.

Here is the limit.

PPF does not make paint impossible to damage.

A large stone, sharp object, high-speed impact, collision, or severe strike may penetrate or tear the film and damage the paint below.

The purpose of ULTIMATE PLUS is to give your paint a sacrificial layer against common road hazards, not to turn body panels into impact-resistant armor.

How XPEL Ultimate Plus Handles Light Scratches

Light scratching is another area where XPEL Ultimate Plus thickness works with the film’s surface technology.

XPEL’s product care instructions state that light scratches in ULTIMATE PLUS can self-heal.

At room temperature, XPEL says light film scratches can heal within approximately 20 to 30 minutes.

Warm water can speed the process in colder conditions.

This feature applies to light damage in the film’s surface.

Think about:

• Fine wash marks
• Light swirls
• Minor surface scratches
• Very light contact marks

Self-healing does not mean every scratch disappears.

If an object cuts deeply through the polyurethane, tears the film, or reaches the paint underneath, the damaged section may need professional inspection or replacement.

That distinction is worth remembering when comparing PPF claims.

Does XPEL Ultimate Plus Protect Against Abrasion?

Yes, abrasion resistance is part of the intended purpose of XPEL ULTIMATE PLUS.

XPEL’s technical sheet describes the film as being designed to protect painted surfaces from stone chips and abrasion.

Everyday abrasion can come from many sources:

• Road grit
• Sand
• Dust
• Repeated light contact
• Tire-thrown debris
• Loading areas
• Shoe contact near rocker panels
• Minor brushing against exterior surfaces

The location of the PPF determines which parts of your vehicle receive this barrier.

Full Front PPF protects a different set of surfaces from rocker-panel or full-body coverage.

If your main concern is freeway debris, front-end film may be the place to focus.

If lower doors and rocker panels regularly collect grit, wider coverage may make sense.

What About Bugs, Bird Droppings, and Road Contamination?

Physical impact is only part of the problem vehicle paint faces.

Bug residue, bird droppings, road grime, tree residue, and other contaminants can sit on exposed surfaces.

XPEL describes ULTIMATE PLUS as offering protection against environmental contaminants.

The PPF becomes the exposed surface rather than the factory clear coat underneath.

This does not mean contamination should be ignored.

Bug remains and other deposits should still be cleaned promptly.

XPEL’s care instructions tell owners to remove insect stains as soon as possible and provide separate instructions for stubborn contamination.

The film is there to take the exposure, but routine care still matters.

What 8 Mil PPF Cannot Guarantee Protection Against

This section matters just as much as the list of things PPF can help with.

XPEL Ultimate Plus thickness does not create unlimited impact protection.

XPEL’s current warranty specifically excludes many kinds of outside-force damage.

Examples include:

• Collision damage
• Accidental damage
• Vandalism
• Hail
• Flood damage
• Physical damage
• Damage caused by rock or road-debris impact
• Scratches and chips to the painted surface
• Damage caused by improper washing

That does not mean ULTIMATE PLUS is not designed to protect against ordinary rock chips.

XPEL markets the film for exactly that purpose.

The distinction is that protection from a hazard is not a guarantee that no impact can ever cause damage.

A small piece of road debris and a large sharp rock hitting at high speed are very different events.

PPF reduces exposure. It does not repeal physics.

Does Thicker PPF Always Mean Better Protection?

Not necessarily.

Thickness is worth looking at, but it should not be the only specification you consider.

A PPF also needs to:

• Conform to vehicle curves
• Stay bonded to the surface
• Resist normal environmental exposure
• Maintain optical clarity
• Handle stretching during installation
• Resist stone-chip impact
• Allow clean installation around body lines
• Maintain its surface appearance

XPEL publishes technical testing for properties beyond thickness, including adhesion, weathering, tensile behavior, and stone-chip resistance.

This is why comparing films based only on mil thickness can give an incomplete picture.

The film material and its construction matter too.

Why Self-Healing Matters

Paint protection film will eventually receive light marks simply because it is the outer surface.

That is its job.

The self-healing clear coat on ULTIMATE PLUS helps the film recover from certain minor surface scratches rather than letting every small swirl remain visible.

XPEL recommends heat when faster healing is needed under colder conditions.

For someone who cares about keeping a vehicle looking clean, that feature helps the film continue serving as a transparent protective layer rather than quickly becoming covered in fine wash marks.

Proper washing remains important.

Self-healing is not a reason to use harsh brushes or aggressive automatic washes.

Where Should You Install XPEL Ultimate Plus?

You do not have to cover every painted panel to benefit from PPF.

Coverage can be selected around the areas that face the greatest exposure.

Full Front PPF

A Full Front package commonly protects areas such as:

• Front bumper
• Full hood
• Full front fenders
• Side mirrors
• Headlights where suitable

This type of coverage focuses the XPEL Ultimate Plus thickness on panels that face road debris directly.

Rocker Panels

Rocker panels sit close to the road and can collect grit thrown by the tires.

Sports cars, EVs, and vehicles with wide tires may benefit from added coverage in these areas.

Door Cups and Door Edges

Door cups can collect fingernail marks.

Door edges can pick up light scuffs from daily use.

PPF can place a sacrificial film over these smaller contact zones.

Full-Body PPF

Full-body coverage extends film across most or all painted exterior panels.

This can make sense for owners who want broad protection rather than only front-end coverage.

Visit our paint protection film page to learn more about available coverage.

XPEL Ultimate Plus for Fremont Freeway Driving

Fremont, CA drivers spend plenty of time on I-880, I-680, Mission Boulevard, Auto Mall Parkway, and other heavily traveled Bay Area roads.

Highway miles can expose the front of a vehicle to repeated debris.

A single commute may involve:

• Gravel thrown by tires
• Small stones
• Road grit
• Bugs
• Dust
• Construction residue
• Tire debris

Drivers coming from Union City, CA, Newark, CA, Milpitas, CA, and surrounding communities can face the same conditions.

That is where the purpose of an 8 mil PPF becomes easy to understand.

Instead of exposing factory paint directly, you put a clear polyurethane film in front of it.

If the film takes a chip or scratch that would otherwise have reached the paint, it has done its job.

How Long Is XPEL Ultimate Plus Warranted?

XPEL currently provides a 10-year limited product warranty for professionally installed ULTIMATE PLUS and STEALTH PPF when the warranty requirements are met.

The warranty covers listed manufacturing defects such as:

• Yellowing
• Cracking
• Blistering
• Delaminating

The warranty does not mean every type of damage is covered.

Scratches, chips, collision damage, rock-impact damage, water spots, improper washing damage, vandalism, hail, and other listed outside causes are excluded.

Read the current XPEL warranty before installation so you know the difference between film-defect coverage and physical-impact damage.

XCare Auto Films is XPEL certified and can discuss the warranty that applies to the product selected for your vehicle.

How to Care for XPEL Ultimate Plus

Once PPF is installed, proper care helps preserve its appearance.

XPEL currently recommends:

1. Waiting 48 hours after installation before washing.
2. Removing insect stains promptly.
3. Using suitable film-cleaning products.
4. Keeping harsh chemicals away from vehicle paint.
5. Using XPEL Ceramic Boost periodically to help maintain gloss.
6. Having damage inspected by an XPEL Authorized Dealer.
7. Considering routine inspections based on mileage, storage, driving style, climate, and road conditions.

XPEL also warns that improper wash techniques and abrasive washing tools can damage film.

PPF is made to take punishment from normal driving, but it still benefits from careful maintenance.

Schedule XPEL PPF With XCare Auto Films

If you are researching XPEL Ultimate Plus thickness because you are deciding whether PPF is right for your vehicle, XCare Auto Films can help you choose the coverage that matches how you drive.

We are located at:

XCare Auto Films
45277 Fremont Blvd STE 7
Fremont, CA 94538
Phone: (510) 993-9833
Hours: Monday through Friday, 11 AM to 7 PM

We are XPEL certified and an XPEL vendor.

Our vehicle protection services include:

• XPEL Paint Protection Film
• XPEL ULTIMATE
• XPEL ULTIMATE FUSION
• XPEL STEALTH
• XPEL COLOR
• Ceramic Coating
• Paint Correction
• Window Tint

Call (510) 993-9833 or visit our contact page to discuss your vehicle.

You can also review:

• Paint Protection Film
• PPF Deals
• Tesla Paint Protection Film
• Paint Correction
• Ceramic Coating
• Full Protection Packages
• Contact XCare Auto Films

Bottom line, the 8 mil number gives you part of the story.

XPEL ULTIMATE PLUS uses a polyurethane film with a self-healing clear coat and adhesive system to create a sacrificial barrier over automotive paint.

It is designed to help protect against stone chips, abrasion, light scratches, and environmental contamination.

It cannot guarantee that every rock, sharp object, collision, or severe impact will leave the paint untouched.

The real value of XPEL Ultimate Plus thickness is giving exposed paint another layer to absorb everyday road wear before that wear reaches the finish underneath.

Frequently Asked Questions

1. How thick is XPEL Ultimate Plus?

XPEL describes ULTIMATE PLUS as 8 mil thick. Its technical data sheet lists the nominal installed-film thickness without the release liner at approximately 7.60 mil, plus or minus 10%. The 8 mil figure is the rounded thickness commonly used for the product.

2. Is 8 mil the same as 8 millimeters?

No. One mil equals one-thousandth of an inch. An 8 mil PPF is about 0.008 inch thick, or roughly 0.20 millimeter.

3. Can XPEL Ultimate Plus stop rock chips?

XPEL designs ULTIMATE PLUS to protect automotive paint against stone chips and abrasion. The film can absorb many ordinary road impacts before they reach the paint. Severe strikes can still damage the film or paint, so PPF should not be viewed as damage-proof armor.

4. Does XPEL Ultimate Plus self-heal scratches?

XPEL states that light scratches in ULTIMATE PLUS can self-heal. Its care instructions say light surface scratches may heal in about 20 to 30 minutes at room temperature. Deep cuts and tears are different and may require film replacement.

5. Will 8 mil PPF protect against a collision?

No PPF should be expected to prevent collision damage. XPEL’s warranty excludes collision, accidental damage, vandalism, hail, physical damage, and other outside-force events.

6. How long is XPEL Ultimate Plus covered by warranty?

XPEL currently lists a 10-year limited product warranty for professionally installed ULTIMATE PLUS against listed manufacturing defects such as yellowing, cracking, blistering, and delaminating. Warranty exclusions apply.

7. Where can I get XPEL Ultimate Plus installed in Fremont, CA?

XCare Auto Films installs XPEL Paint Protection Film at 45277 Fremont Blvd STE 7, Fremont, CA 94538. Call (510) 993-9833 or use our contact page to discuss PPF coverage for your vehicle.

Sources

• XPEL ULTIMATE PLUS
  Publisher: XPEL
  Publication Date: Current product page
  URL: https://www.xpel.com/products/ultimate-plus
• XPEL ULTIMATE PLUS Technical Data Sheet
  Publisher: XPEL
  Publication Date: Current technical data sheet available through XPEL
  URL: https://www.xpel.com/web-assets/downloads/xpel-ultimate-plus-xupl-tds.pdf
• XPEL Product Care Instructions
  Publisher: XPEL
  Publication Date: Current care page
  URL: https://www.xpel.com/product-care
• XPEL Warranty Information
  Publisher: XPEL
  Publication Date: Current warranty page
  URL: https://www.xpel.com/warranty-information
